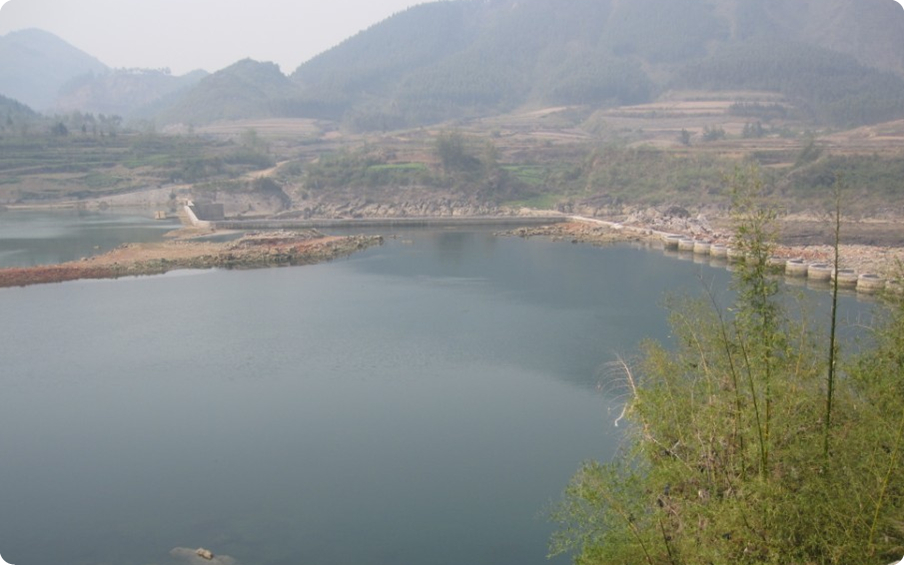

Sancha power station in Guangxi province

      It lies on the liuzhou city, Guangxi province. Its installed capacity is 12MW, rated water head is 5 m and the runner diameter is Φ4800mm. It began to run on Nov., 2008 and the running condition is excellent.

parameter of the turbine

Rated output power：7290kW

Rated water head ：5.0m

Rated revolving speed：100r/min

Rated discharge：161.2m3/s

Runner diameter：Ф4800mm

Parameter of generator

Rated power：7000kW

Rated voltage：6.3Kv

Power factor：0.9

Rated frequency：50HZ

Pole number：60
